John von Neumann and the
Evolutionary Growth of Complexity:
Looking Backward,
Looking Forward...

Barry McMullin
Research Institute in Networks and
Communications Engineering (RINCE)
Dublin City University
Barry.McMullin@dcu.edu

ALife VII: August 2000
(FoilTeX Presentation)

Burks' Problem:
Machine Self-Reproduction

• Kinematic Framework

• Cellular Framework (Ulam)
  • Discrete 2D Space/Discrete Time
  • Cells are 29 State FSM's
  • Automata are functional patterns of states over cells, embedded in the space.

Trivial Self Reproduction?

• Burks (1970):

  ... This result is obviously substantial, but to express its real force we must formulate it in such a way that it cannot be trivialized ...

Trivial Self Reproduction?

• Burks (1970):

  ... Consider, for example, a two-state cellular system whose transition function takes a cell into state one when any of its neighbors is in state one. Define an automaton to be any area, even a single cell. A cell in state one then reproduces itself trivially in its neighboring cells...

Trivial Self Reproduction?

• Burks (1970):

  ... Clearly what is needed is a requirement that the self-reproducing automaton have some minimal complexity...

Burks' Criterion:

• Burks (1970):

  ... This requirement can be formulated in a number of ways. We will do it by requiring that the self-reproducing automaton also be a [universal?] Turing machine.

But...
Herman's Counter Example

• Herman (1973):
  • 2D Cellular Framework
  • Cells combine trivial, crystaline, reproduction with universal turing machine head
  • Cells still simpler than in von Neumann model!

But...
Herman's Counter Example

• Herman (1973):

  ...What the result does show is that the existence of a self-reproducing universal computer-constructor in itself is not relevant to the problem of biological and machine self-reproduction...

But...
Herman's Counter Example

• Herman (1973):

  ... Hence, there is a need for new mathematical conditions to insure non-trivial self-reproduction.

Langton's Critique

• Langton (1984):

  Computational criterion too strong rather than too weak?

Langton's Criterion

• Langton (1984):
  • Non-trivial self reproduction characterised by separate processes of copying and decoding of a machine description.
  • Satisfied by von Neumann's design.

But...
Langton's Counter Example!

• Langton (1984):
  Langton's Loop automaton also satisfies this criterion - yet is clearly (?) trivial!

von Neumann's Criterion?

• von Neumann (1949) [Illinois Lectures]:

  ... One of the difficulties in defining what one means by self-reproduction is that certain organizations, such as growing crystals, are self-reproductive by any naive definition of self-reproduction, yet nobody is willing to award them the distinction of being self-reproductive...

von Neumann's Criterion?

• von Neumann (1949) [Illinois Lectures]:

  ... A way around this difficulty is to say that self-reproduction includes the ability to undergo inheritable mutations as well as the ability to make another organism like the original...

von Neumann's Problem:

• How can machines manage to construct other machines more ``complex'' that themselves, in a general and open-ended way--i.e., with the potential for unbounded evolutionary growth of complexity.

Degeneration of Complexity
(Engineering)

Growth of Complexity
(Biology)

von Neumann's Problem:

• Exhibit a class of constructing machines, spanning a wide range of complexities, such that the whole class is connected by the relative construction (mutation) network.
• For good measure, require that every machine in the class also be SR (every machine has a self construction loop). This is necessary (not sufficient) for Darwinian selection...

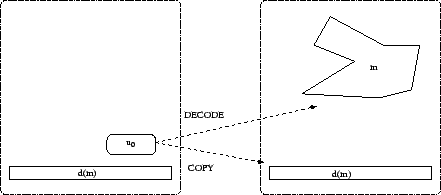

The General Constructive Automaton

$$(u_0 \oplus d(m)) \leadsto (m \oplus d(m))$$

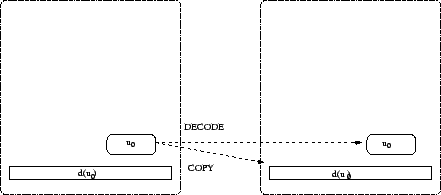

Von Neumann SR: Minimal Case

$$(u_0 \oplus d(u_0)) \leadsto (u_0 \oplus d(u_0))$$

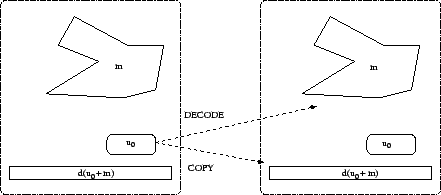

Von Neumann SR: Generic Case

$$((u_0 \oplus m) \oplus d(u_0 \oplus m)) \leadsto ((u_0 \oplus m) \oplus d(u_0 \oplus m))$$

Growth of Complexity
(von Neumann)

Looking Backward

• Is this the first solution?
• Is it the only solution?
• Is it the simplest solution?

Looking Forward

• Complexity?
• Individuality?
• Origins?
• Evolutionary growth of complexity?

Coda...

Science Foundation Ireland
(the other SFI...)

http://www.sfi.ie/

...multidisciplinary proposals in Biotechnology/ICT will be welcomed.

Bibliography

Burks, A. W. (1970),

Von Neumann's Self-Reproducing Automata, in A. W. Burks, ed., `Essays on Cellular Automata', University of Illinois Press, Urbana, pp. 3-64 (Essay One).

Herman, G. T. (1973),

`On Universal Computer-Constructors', Information Processing Letters 2, 61-64.

Langton, C. G. (1984),

`Self-Reproduction in Cellular Automata', Physica 10D, 135-144.

von Neumann, J. (1949),

Theory and Organization of Complicated Automata, in A. W. Burks, ed., `Theory of Self-Reproducing Automata [by] John von Neumann', University of Illinois Press, Urbana, pp. 29-87 (Part One).
Based on transcripts of lectures delivered at the University of Illinois, in December 1949. Edited for publication by A.W. Burks.

Related Online Resources

• Full Paper:
  • http://www.eeng.dcu.ie/~alife/bmcm-2000-01/

• DCU Alife Laboratory:
  • http://www.eeng.dcu.ie/~alife/

• Research Institute for Networks and Communications Engineering (RINCE):
  • http://www.rince.ie/
