Wave Propagation Modelling - Rural Terrain
Our group have developed a number of novel path loss models for propagation over rural terrain profiles. The models are based on the surface integral equation formulation and are full-wave. This means that they implicitly account for all multiple scattering effects along the profile and offer greatly improved accuracy over knife-edge diffraction models.
Advanced mathematical compression and acceleration techniques such as the Fast Far Field Algorithm (FAFFA) and Improved Tabulated Interaction Method (I-TIM) reduce the associated computational burden so that these highly accurate solutions can be computed in seconds on a standard desktop machine (in contrast to unaccelerated solutions which would take several hours to run, depending on frequency).

Wave Propagation Modelling - Rural Terrain

Our group have developed a number of novel path loss models for propagation over rural terrain profiles. The models are based on the surface integral equation formulation and are full-wave. This means that they implicitly account for all multiple scattering effects along the profile and offer greatly improved accuracy over knife-edge diffraction models.

Advanced mathematical compression and acceleration techniques such as the Fast Far Field Algorithm (FAFFA) and Improved Tabulated Interaction Method (I-TIM) reduce the associated computational burden so that these highly accurate solutions can be computed in seconds on a standard desktop machine (in contrast to unaccelerated solutions which would take several hours to run, depending on frequency).

Hover on the images below to enlarge

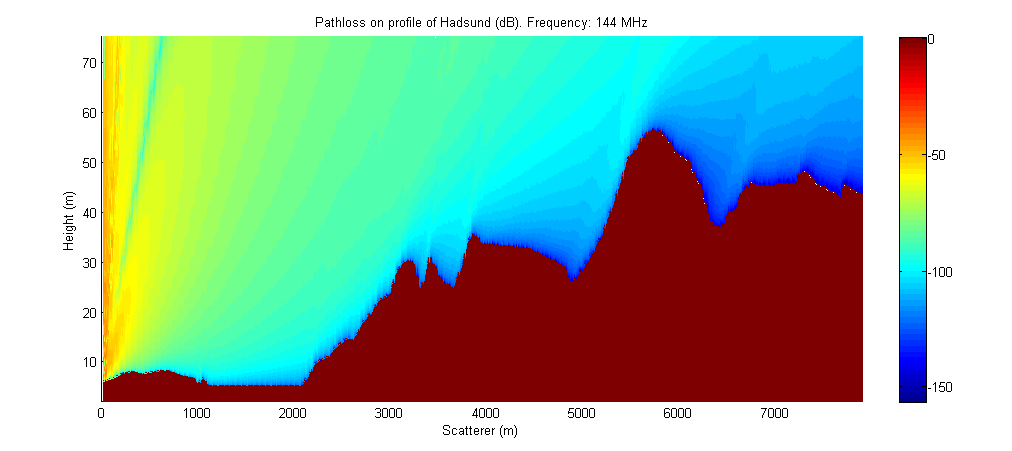

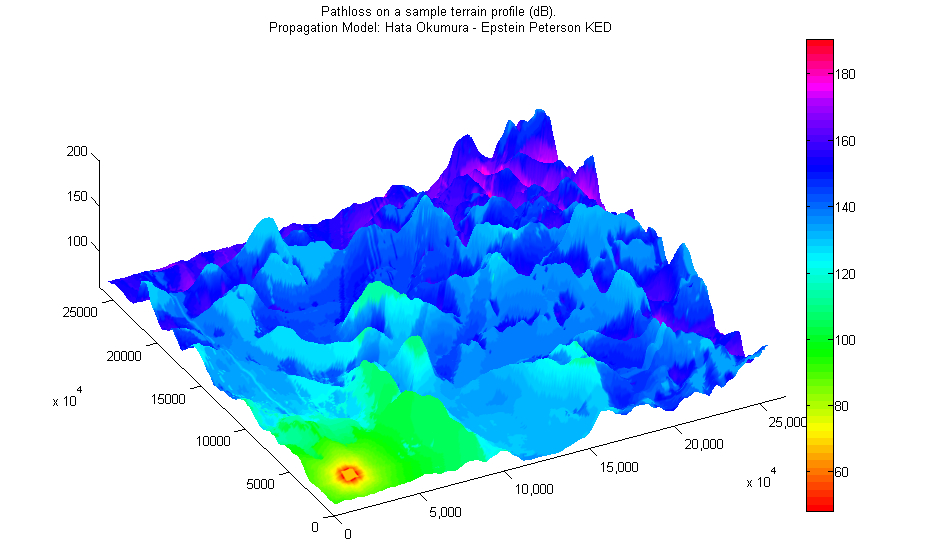

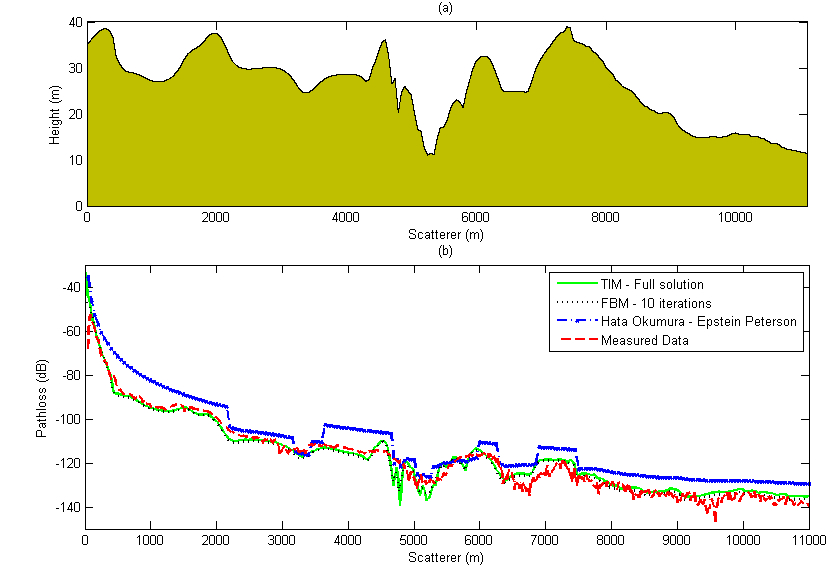

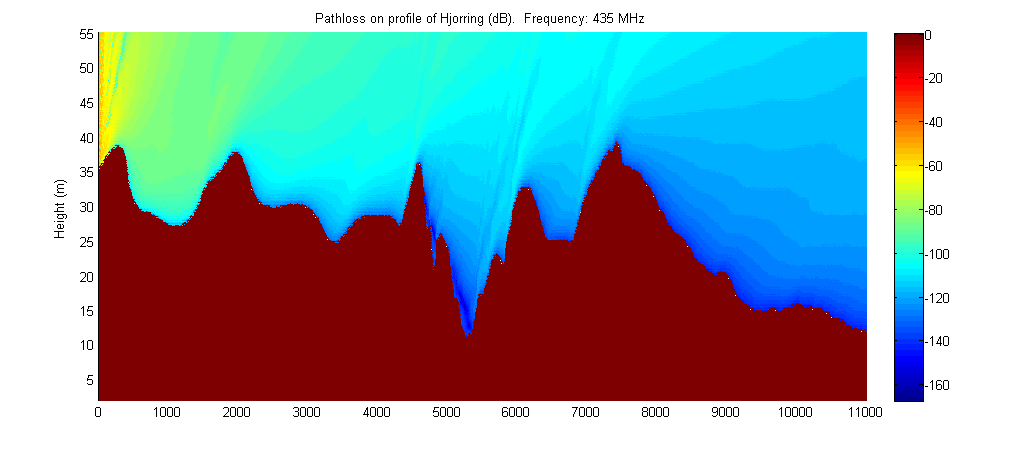

Pathloss comparison Fields over Hadsund profile Fields over Hjorringvej profile Pathloss in mountainous terrain
