As you are aware, computer programs are simply lists of instructions to be carried out by the six different logical units of a computer:
Input Unit recieves data from the input devices such as the keyboard, mouse and any other peripherals
Memory Unit the primary memory unit (Random Access Memory(RAM)) provides fast access storage of computer programs, data from the input devices and data to be sent to the output devices.
Arithmetic and Logic Unit (ALU) peforms the arithmetic calculations on data in memory, such as addition, subtraction, multiplication, division and comparison.
Central Processing Unit (CPU) manages the other units by sending messages to the input unit to read data into the memory unit, informs the ALU which data to operate on, etc.
Storage Unit stores and reads data and programs in long-term storage (e.g. harddisk drive) to be used at a later time.
Output Unit sends information from the computer to make it available outside of the computer, e.g. printer, network device etc.
Computer programmers write programs to interact with these logical units, either in a form that is directly comprehended by
the computer or is comprehened after some form of translation step. Code that is directly understood by a computer is called
machine code. This language is dependent on the exact type of machine that you are working on, i.e. it will
differ if you are working on an Intel PC, or an Apple Macintosh. This code is the lowest level code where an operation to load a number
into a particular address could look like: 10110 1100 1011 1001 0000
. As it is virually impossible for humans to write programs in binary
code (or decimal/hexidecimal) a higher level language is required.
Assembly language improves on this situation as we use sequences of mnemonics to decribe the operations
that we wish to carry out. For example, MOV AX,[VarX]
would load the accumulator with the value contained within
the variable VarX
. This code is much clearer to humans, but it still must be translated into machine code
so that the computer can understand it.
At the level of assembly language it is possible to write complex computer programs, but they must be still written as low-level instructions. High-Level languages were developed to allow a single statement to carry out many tasks. Translator programs called compilers then convert the high-level languages into machine code. C, C++ and Java are all examples of high-level languages. Large programs can take significant time to compile from the high-level language form into the low-level machine code form. An alternative to this is to use interpreters; programs that execute high-level code directly by translating instructions on demand. These programs do not require compilation time, but the interpreted programs execute much more slowly.
Java programs exist in the form of compiled bytecode, that is similar to machine code, except that the platform target is the Java Virtual Machine (JVM). A JVM resides within every Java compatible WWW browser and indeed stand-alone with the Java Run-time Environment (JRE).
A JVM is, in effect, a bytecode interpreting machine running on a hardware machine. This interpreting stage has an overhead and slows the program execution performance of Java applications. Java bytecode is extremely compact, allowing it to be easily delivered over a network. In theory, the JVM in each Web browser is built to the same specification, requiring that one version of source code should be compatible with many platforms, provided that a Java enabled Web browser exists for that platform. In reality, not all Web browsers implement the exact same JVM specification, introducing minor inconsistencies when the same Java applet is viewed using several different browsers, on different platforms.

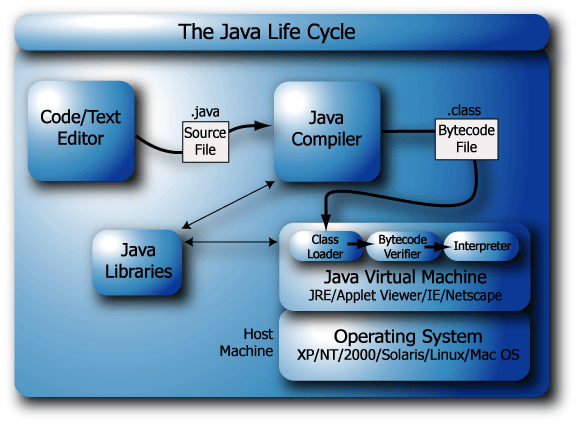

The Java application life cycle can be illustrated as in Figure 4.1, “The Java Life Cycle”. We can use any text editor to create the
high-level Java text file. This file is saved as a .java
file on the disk. We then compile this text file using the
Java compiler, which result in a .class
file being created on the disk. The .class
file contains the
bytecodes. The file is then loaded into memory by the class loader. The bytecode verifier confirms that the bytecodes are valid and not
hostile. Finally, the JVM reads the bytecodes in memory and translates them into machine code.
The latest release of Java 2 includes two virtual machine implementations:
Java HotSpot Client VM - A virtual machine tuned for single-user client applications that require fast start-up times and low memory usage.
Java HotSpot Server VM - A virtual machine
tuned for multi-user applications running in a server environment. This VM includes
active compilation (compiling sections of code, requiring high usage), high performance
memory and thread managment. (Simply invoke by passing -server
to the
standard VM on execution, e.g. java -server HelloWorld)
